AOZI RV COMPONENT · 12V FOUR-LEG SYSTEM
AOZI 12V Four-Leg Sensor-Based Automatic Leveling & Stabilization System
A chassis-integrated system for caravan manufacturers, importers and RV component distributors. Sensor feedback coordinates four electric legs to level the vehicle and provide stable support.
4legs per system
12V DCoperating voltage
800 kgrated load per leg
3,200 kgcombined rated load
01 · SYSTEM OVERVIEW
Four coordinated legs. One chassis-specific review.
The system is supplied as a four-leg set for automatic leveling and stabilization. AOZI reviews mounting space, bracket arrangement, required extension stroke and vehicle mass before confirming suitability and quotation.
- Sensor-based automatic leveling
- Four-leg coordinated support
- Original-position bolt-on replacement on most compatible chassis
- Overvoltage, undervoltage, overcurrent and overtemperature alerts
- Built-in extension and retraction limit switches
- A3 carbon-steel main structure
- 95° deployed support angle

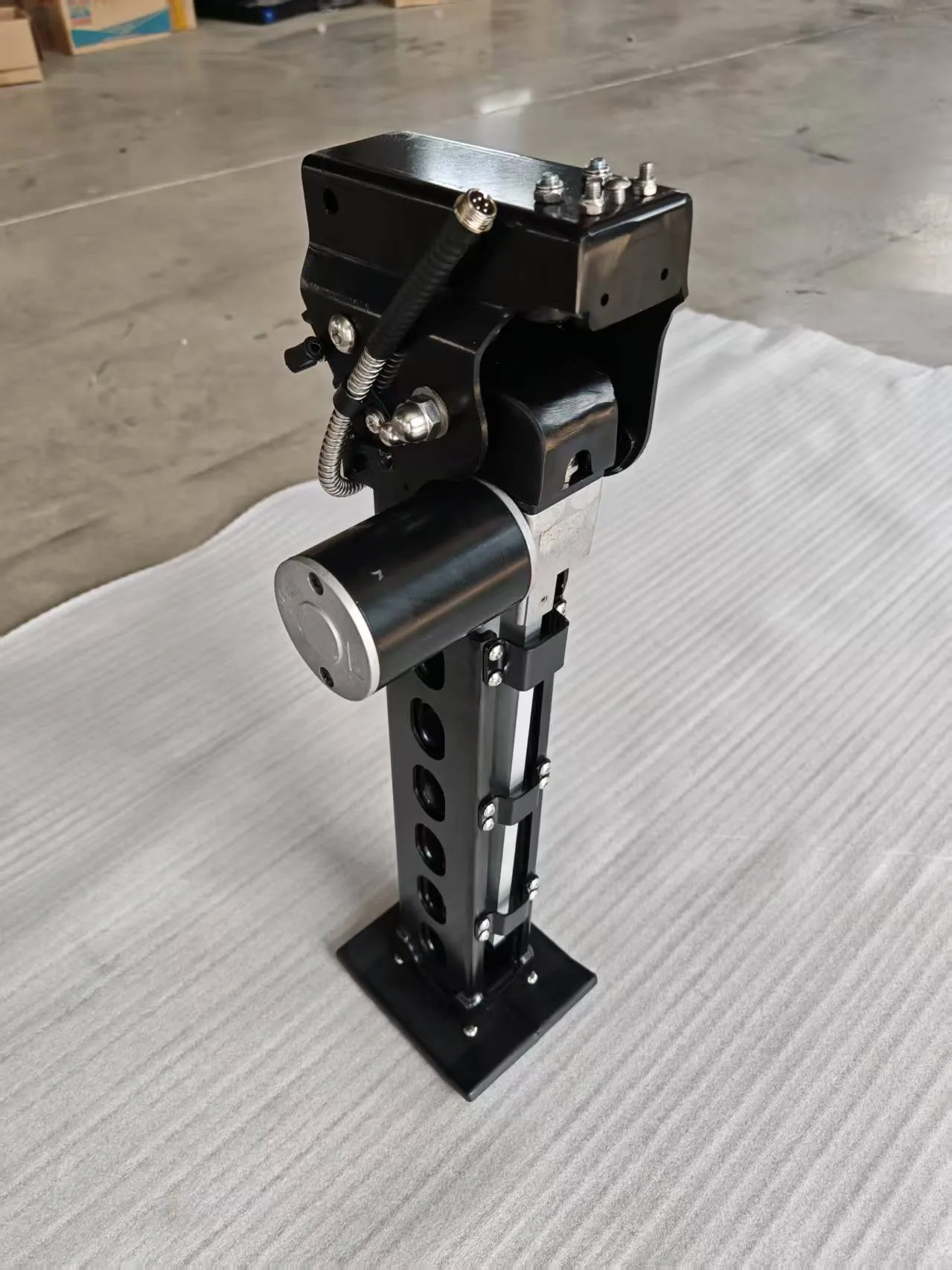

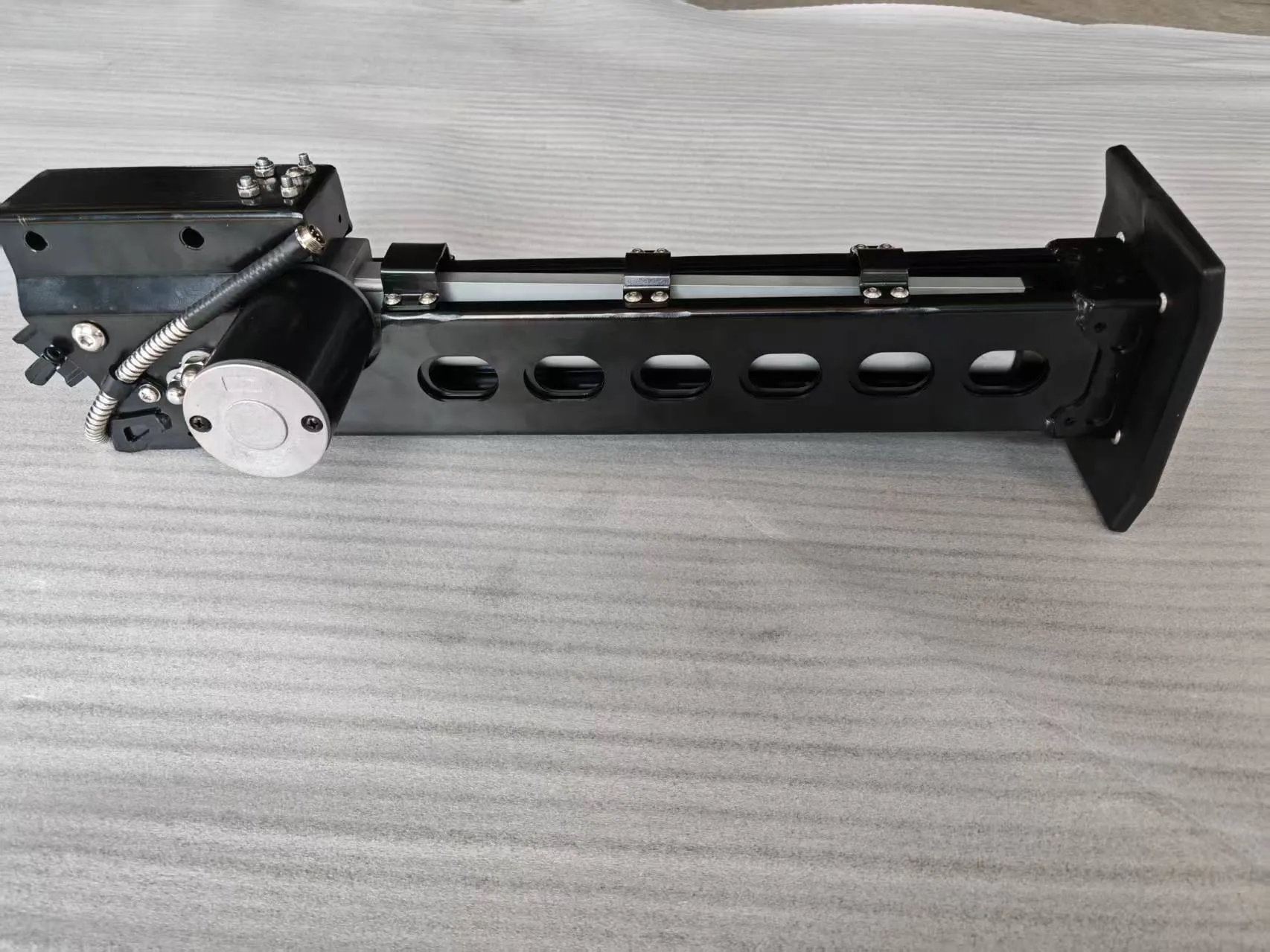

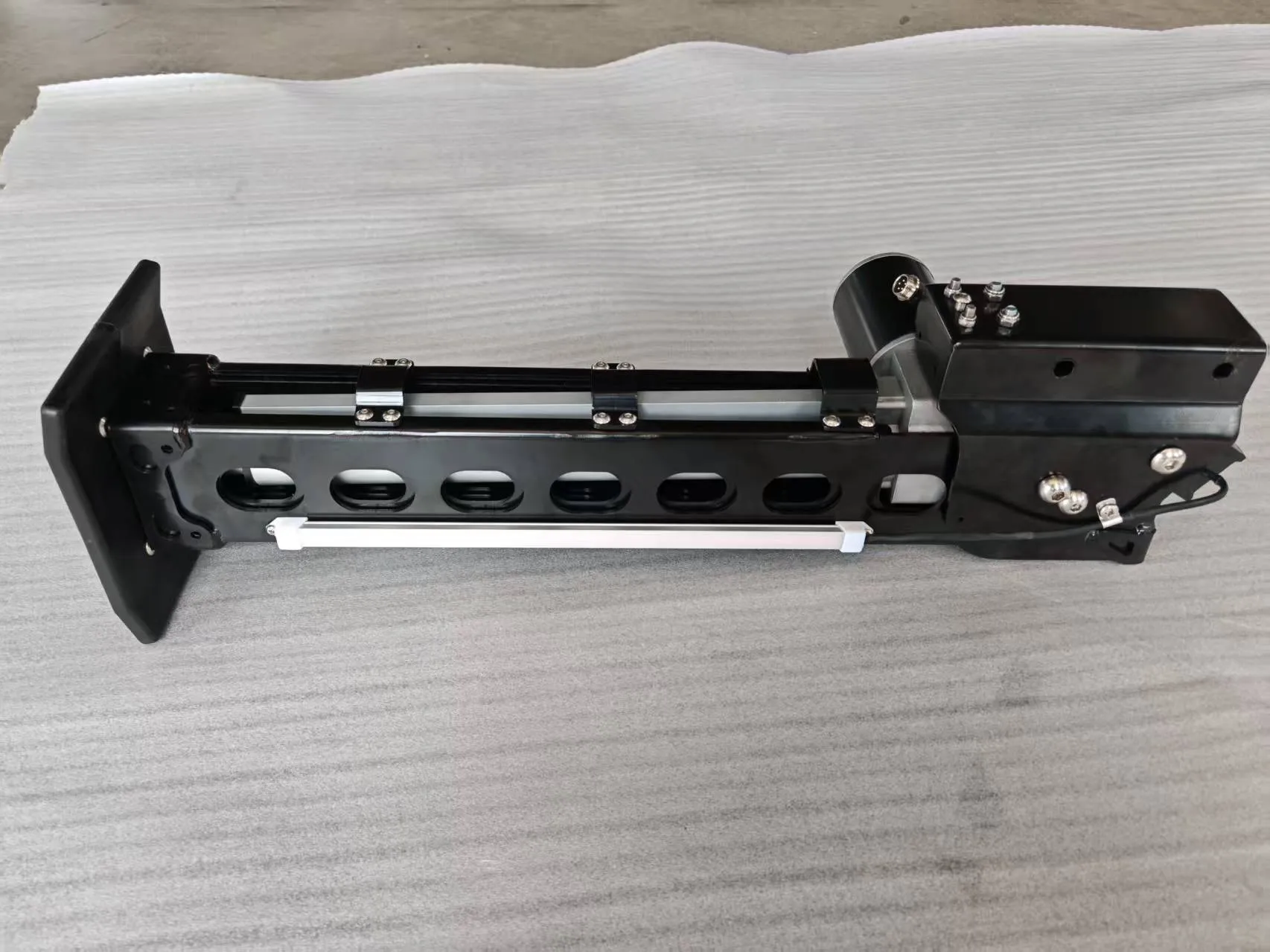

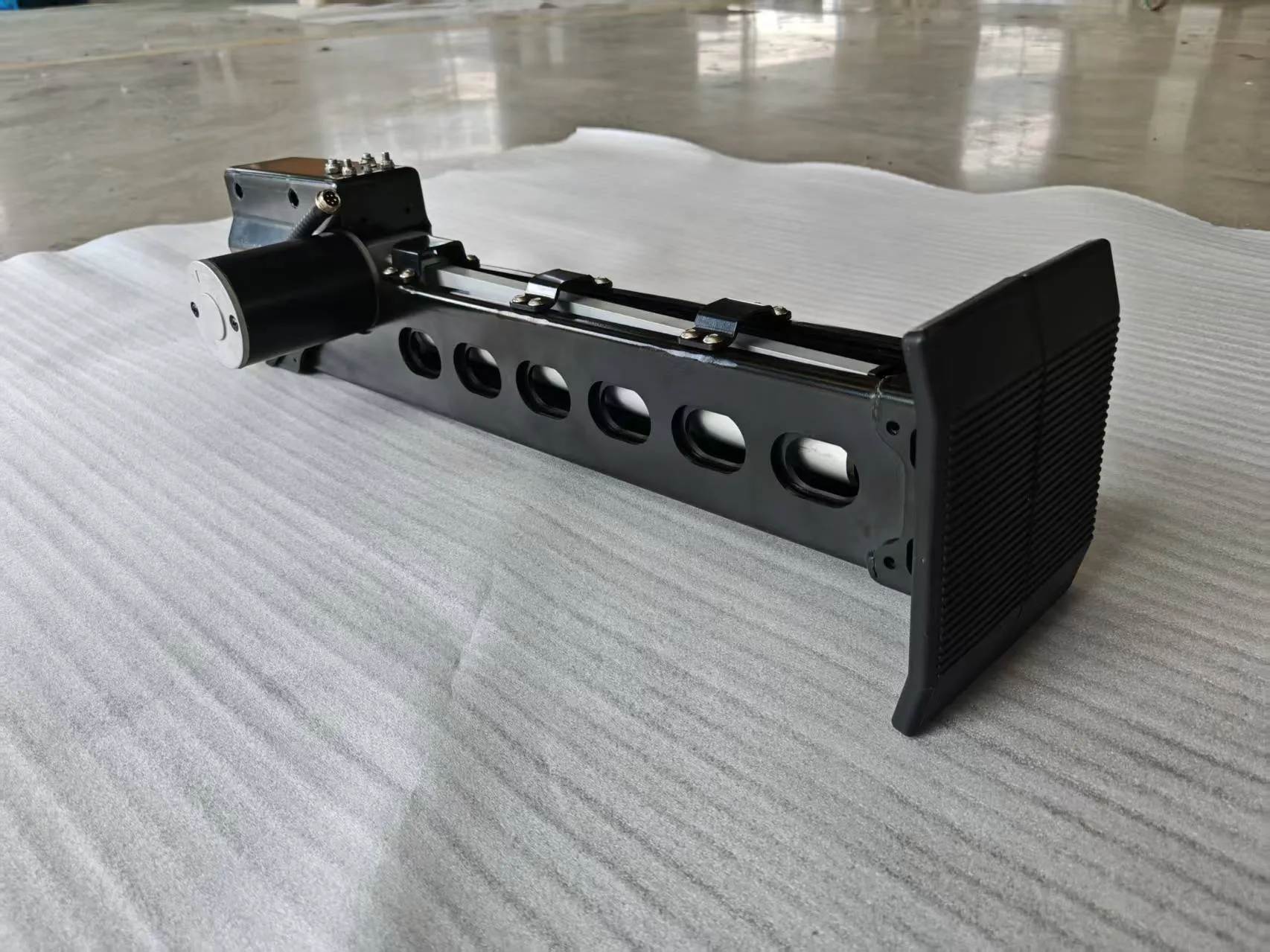

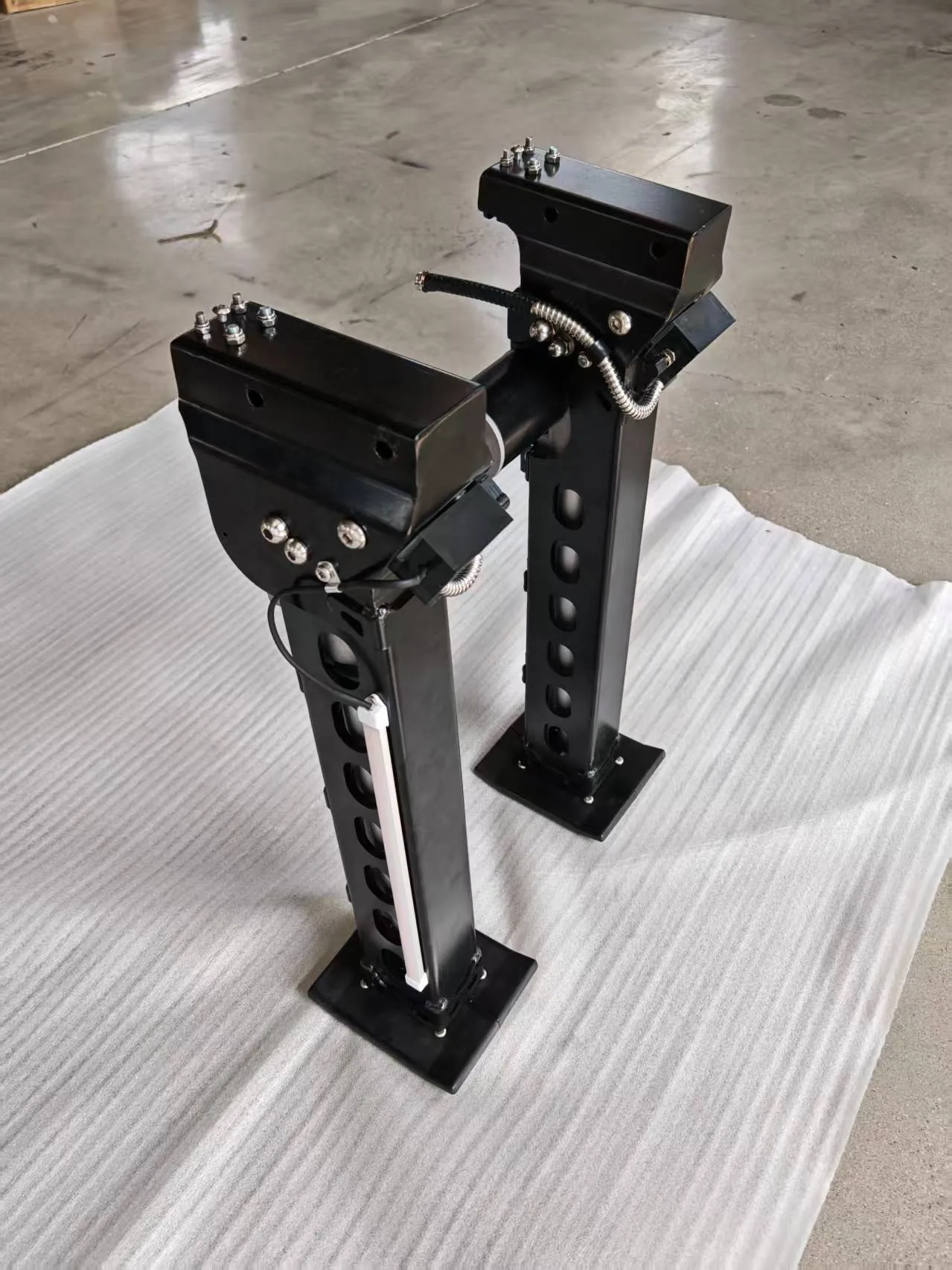

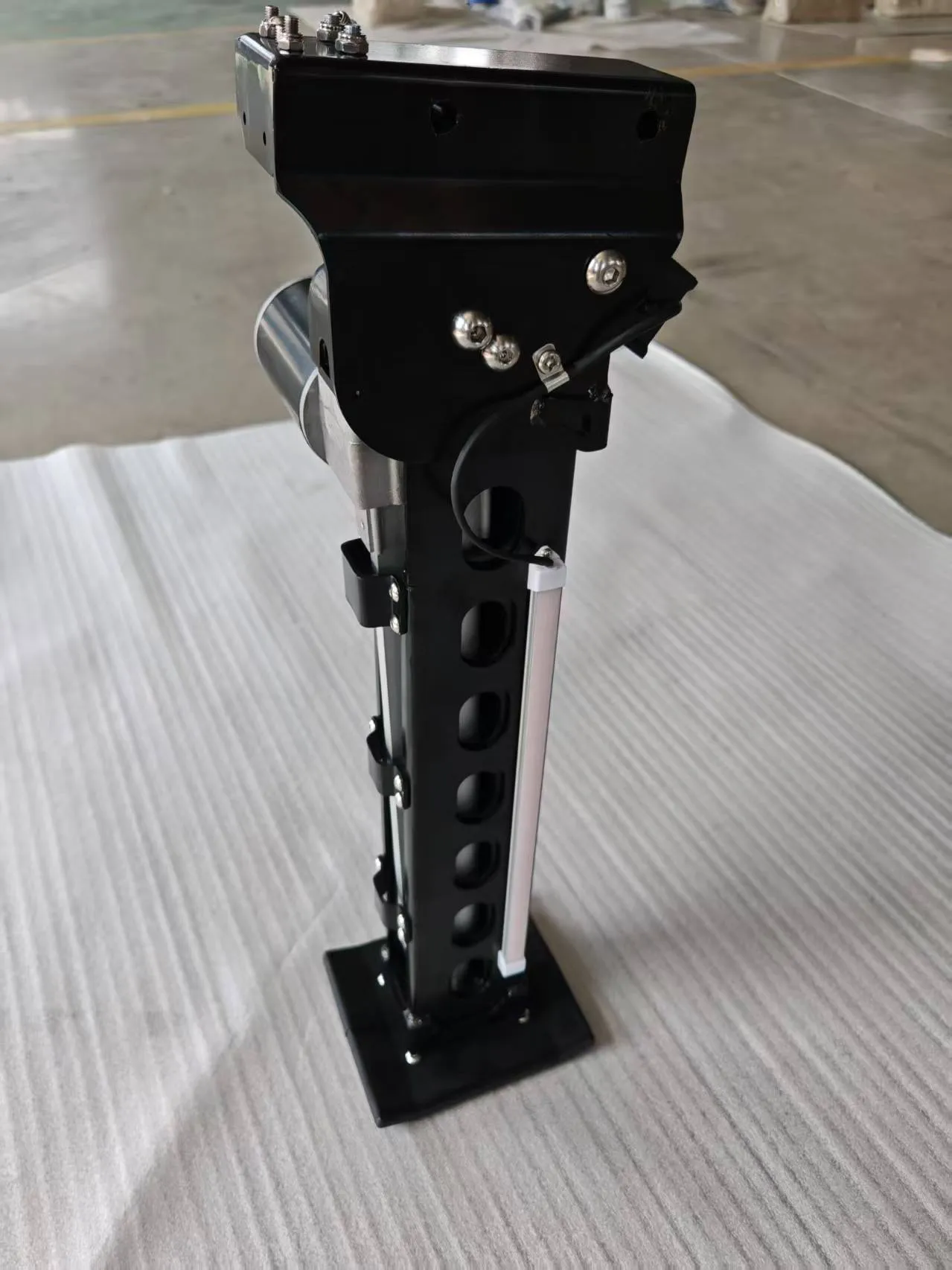

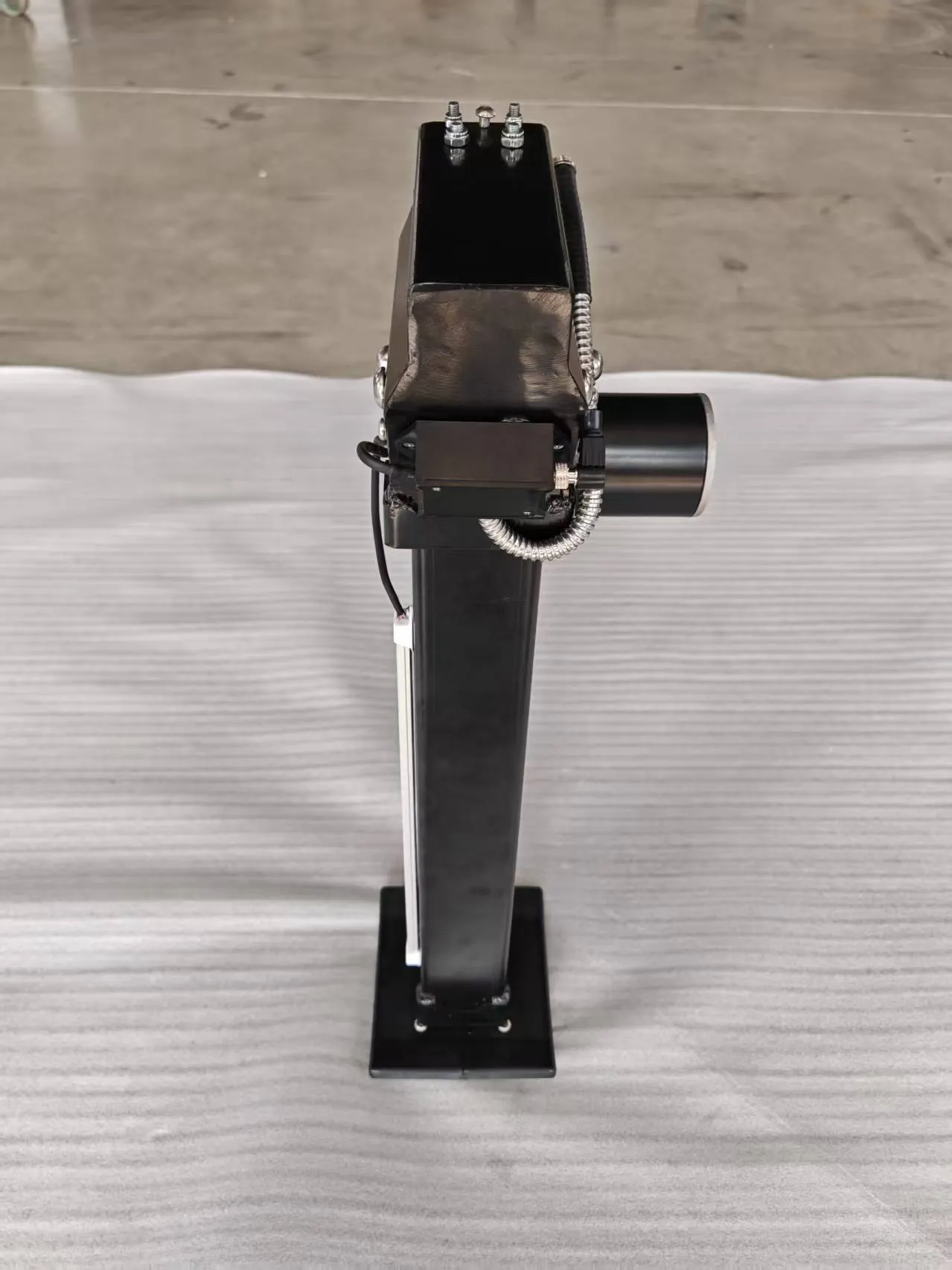

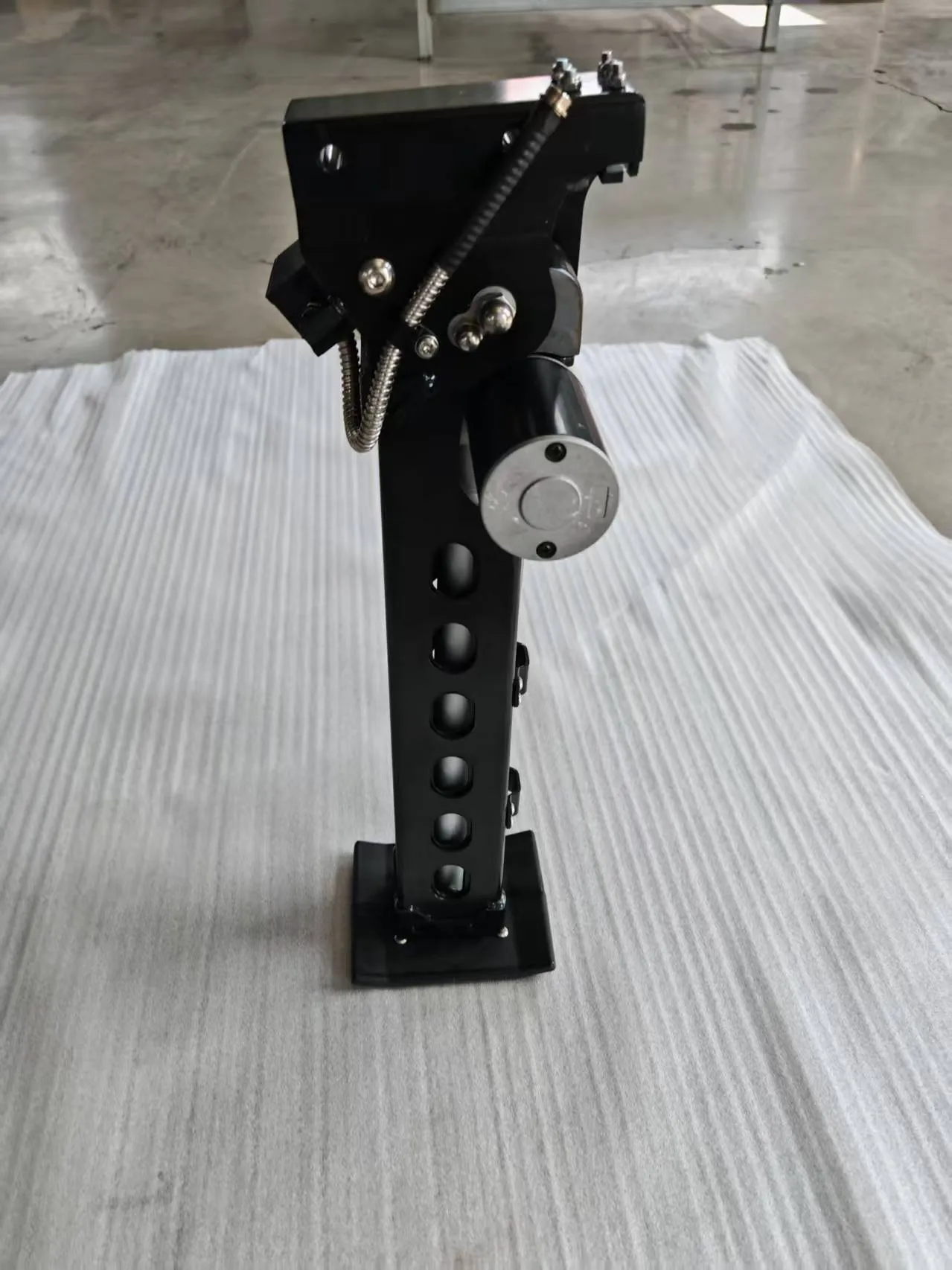

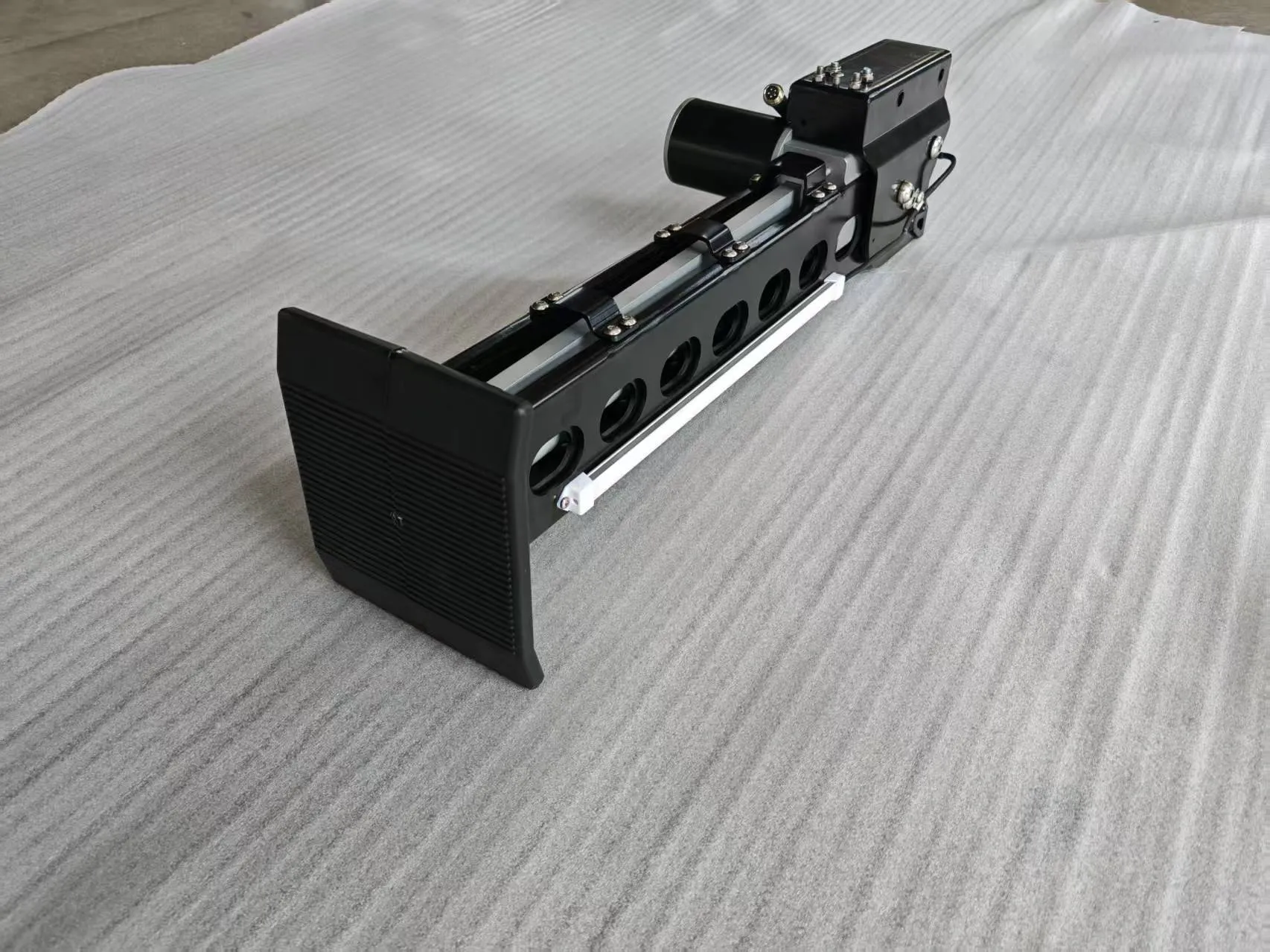

02 · LEG STRUCTURE & POSITIONS
Real product details, retracted and deployed.
These photographs show the supplied product from key mounting, drive and support angles. Final mounting dimensions and extension stroke are confirmed for each chassis.
03 · PRODUCT DEMONSTRATION

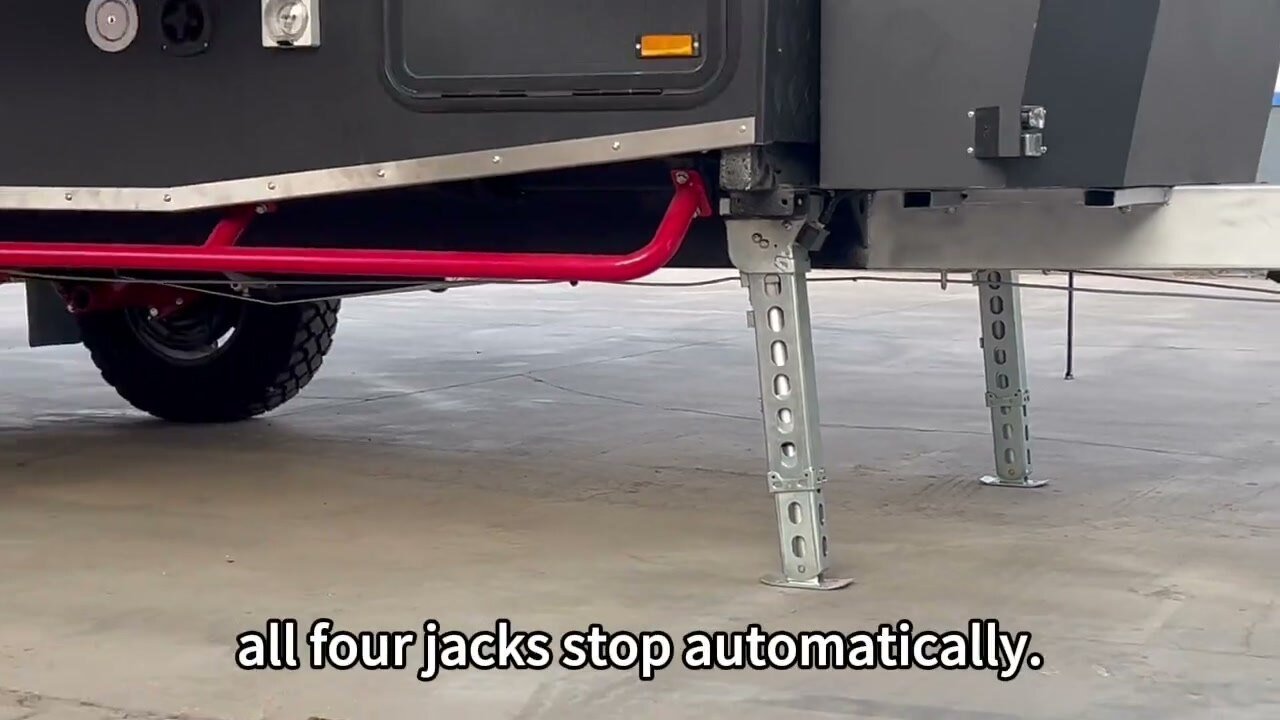

Automatic Leveling Jacks — Full Operation Demonstration
Watch the four-leg system progress from level detection and coordinated extension to automatic leveling and stable support.
04 · CONFIRMED TECHNICAL DATA
A clear starting point for engineering review.
System configuration4 legs per set
Operating voltage12V DC
Rated load per leg800 kg
Combined rated load3,200 kg per four-leg system
Recommended maximum vehicle mass3,500 kg
Main structureA3 carbon steel
Deployed support angle95°
Mounting dimensions & extension strokeConfirmed per chassis
The recommended 3,500 kg maximum vehicle mass is not the lifting capacity. This product is specified for leveling and stabilization; final fitment must be confirmed against the vehicle chassis.
05 · CHASSIS FITMENT REFERENCE
Fitment is reviewed before supply.

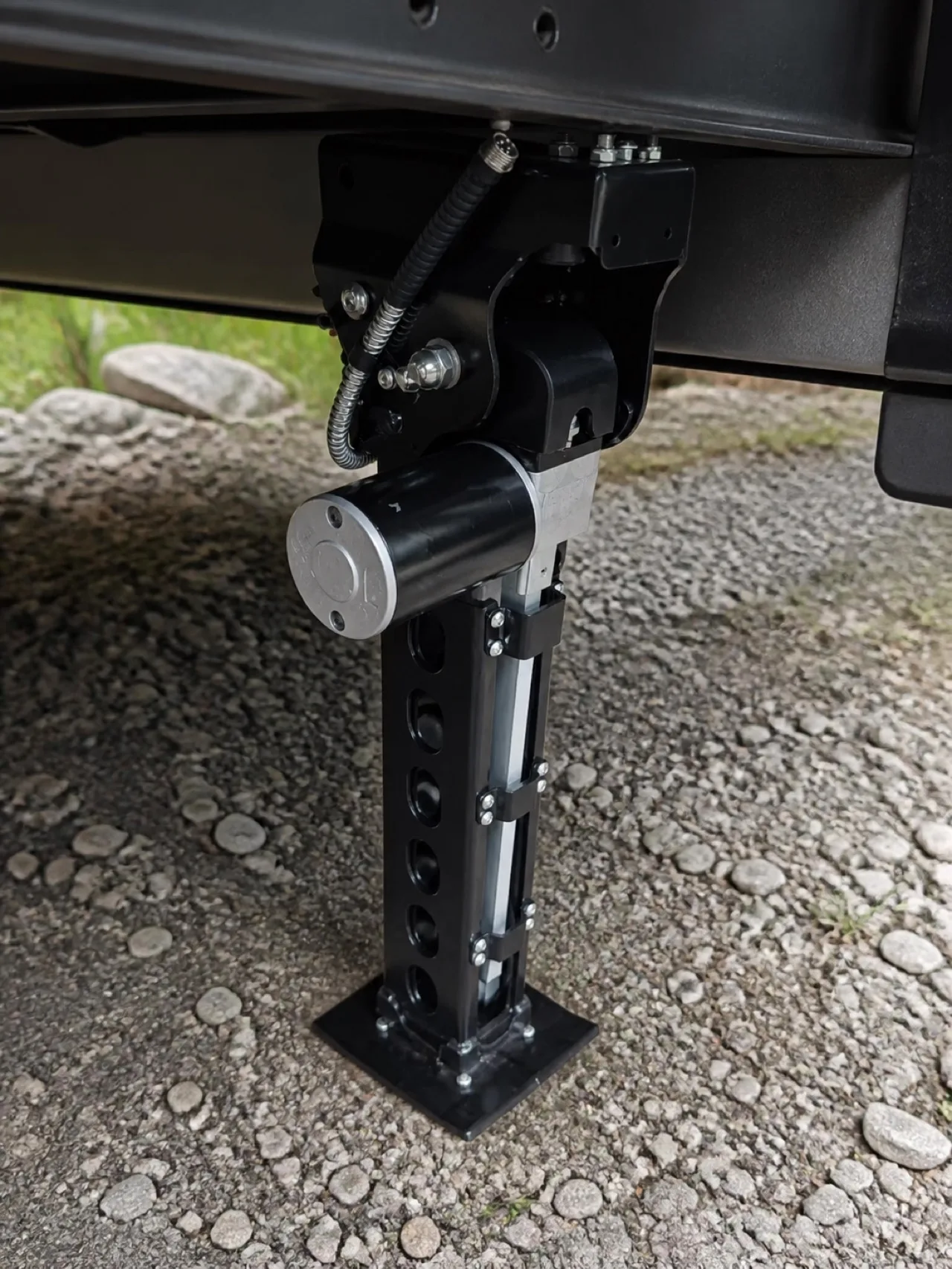

The image below is an illustrative chassis-fitment reference, not a customer installation case. AOZI checks available mounting space, chassis drawings, bracket layout and required stroke before confirming the supply configuration.

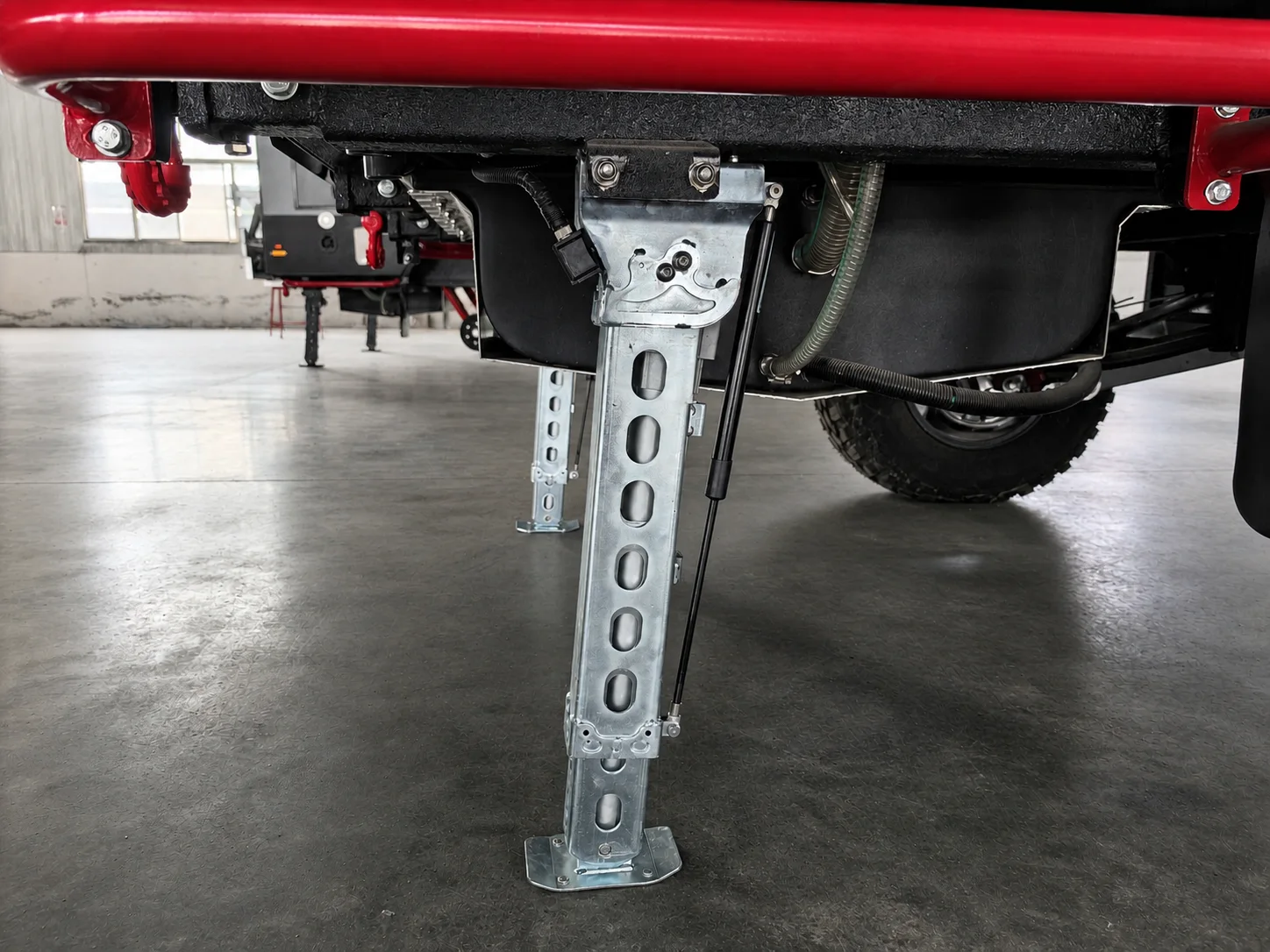

Request a fitment review06 · REAL VEHICLE INSTALLATION

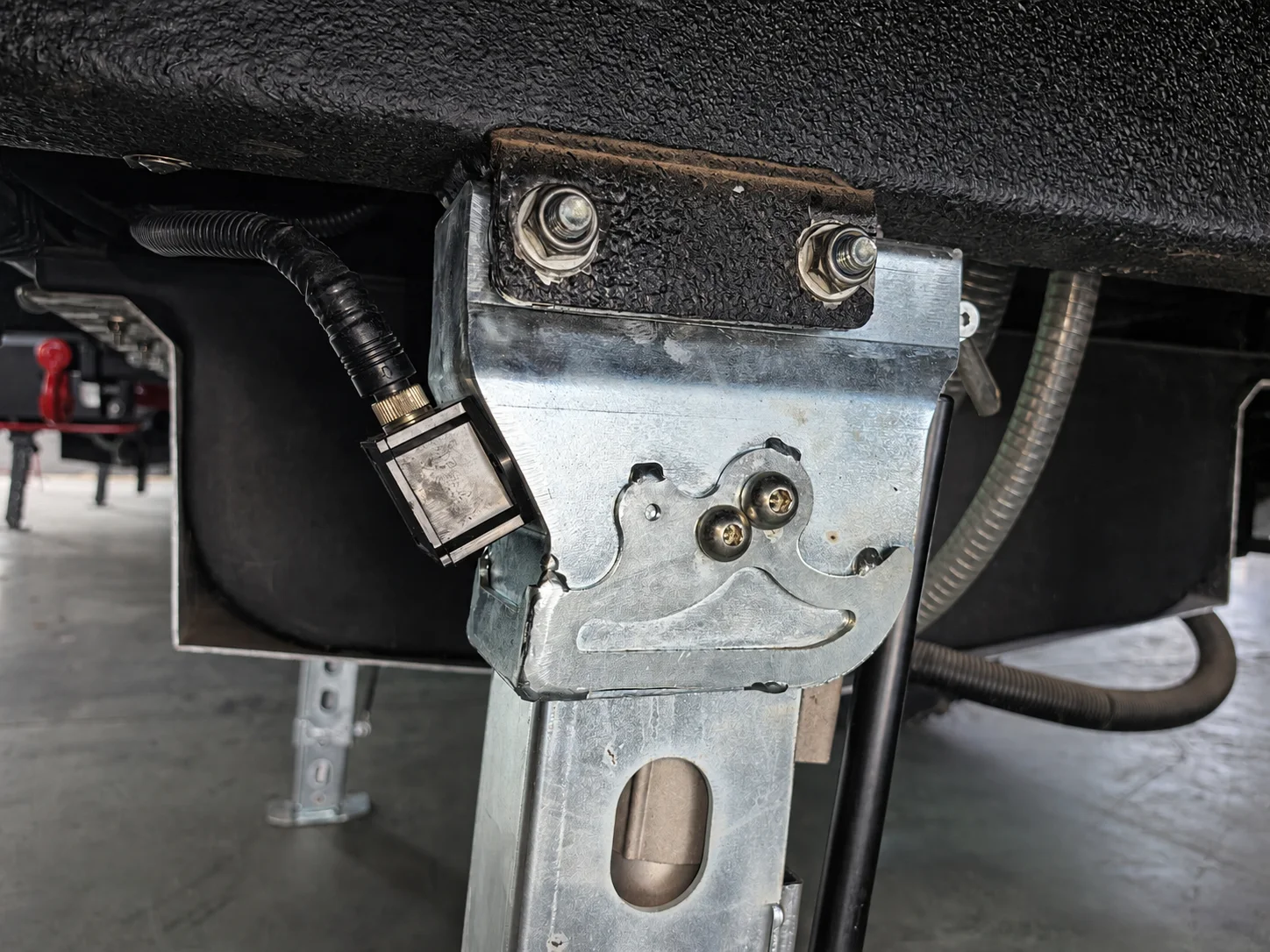

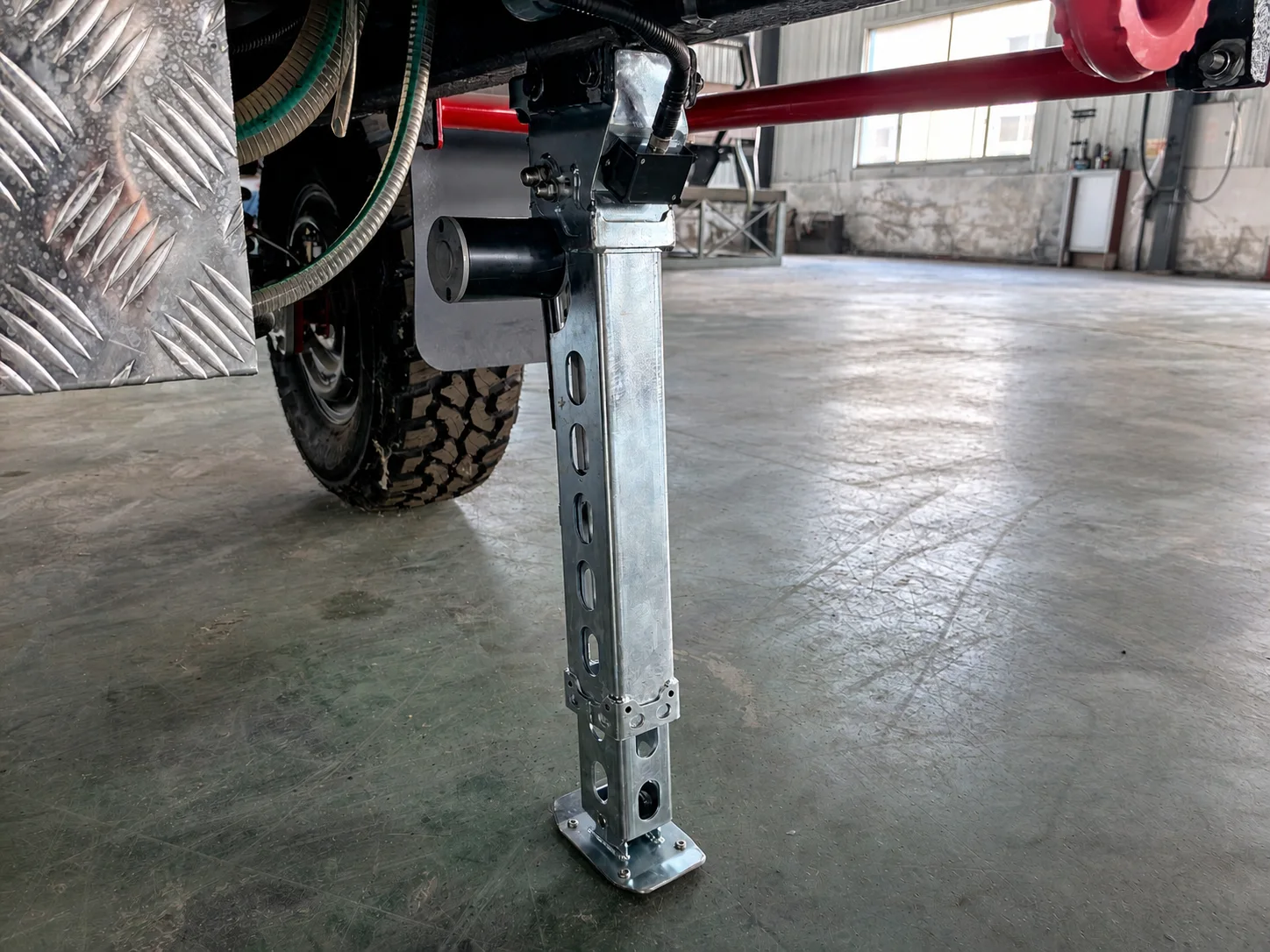

Replace the manual jack at its existing mounting position.
On most compatible trailer and caravan chassis, the manual jack can be removed and the AOZI electric leg fitted at the original position using the existing bolt pattern—without drilling, cutting or welding. A small number of chassis designs require confirmation or a model-specific bracket before supply.
- Existing mounting position
- Bolt-on mechanical replacement for most compatible chassis
- Special chassis reviewed before supply

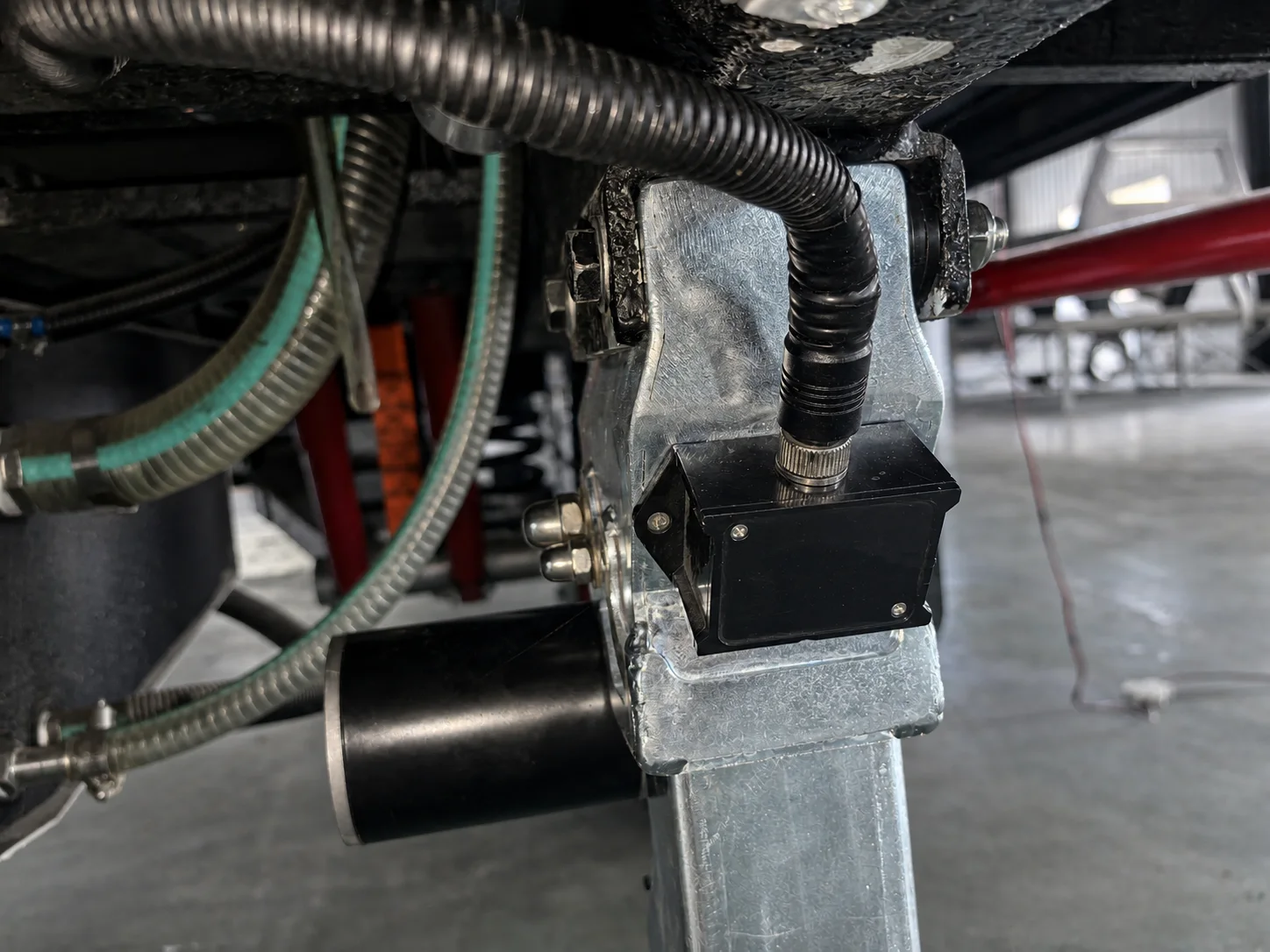

Real workshop installation photographs. Electrical connection and controller setup must follow AOZI installation instructions.
07 · PATENT DOCUMENTATION
Two Chinese utility model patents support the product design.
Both patents were granted to DE ZHOU AO ZI CAMPING EQUIPMENTS CO., LTD. Patent certificates are available for review.
View patent certificates一种房车用支腿
ZL 2021 2 2440239.9
CN 216184744 U · 05 Apr 202208 · TECHNICAL FAQ
Questions buyers usually confirm before quotation.
Is this a four-leg system?
Yes. The reference configuration is one complete system with four coordinated electric legs.
Can it level a caravan automatically?
The controller uses sensor feedback to coordinate the legs for automatic leveling and stabilization.
What is the rated load?
The confirmed rated load is 800 kg per leg and 3,200 kg combined for the four-leg system.
Does it fit every chassis?
It fits most common chassis layouts. On compatible models, the original manual jack is removed and the electric leg is bolted into the existing position without drilling, cutting or welding. A small number of chassis designs require confirmation or a model-specific bracket.
Can the system lift the whole vehicle?
The system is specified for leveling and stabilization. It is not presented as a whole-vehicle lifting or wheel-lifting system.
What information is needed for a fitment review?
Send the vehicle model, maximum vehicle mass, chassis drawing or available mounting-space dimensions, required stroke, annual quantity, destination country and OEM-branding requirement.
09 · FITMENT & OEM INQUIRY
Send the chassis information before requesting a firm quotation.
AOZI will review the supplied fitment information and reply with the next technical questions. Drawings can be sent by email after the first contact.
